• 3D Letters advice

    Posted by Mark Johnston on July 6, 2023 at 11:23 am

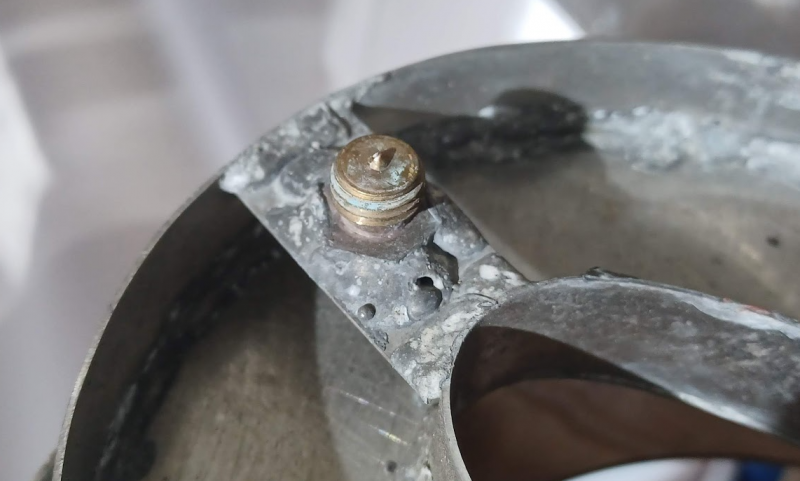

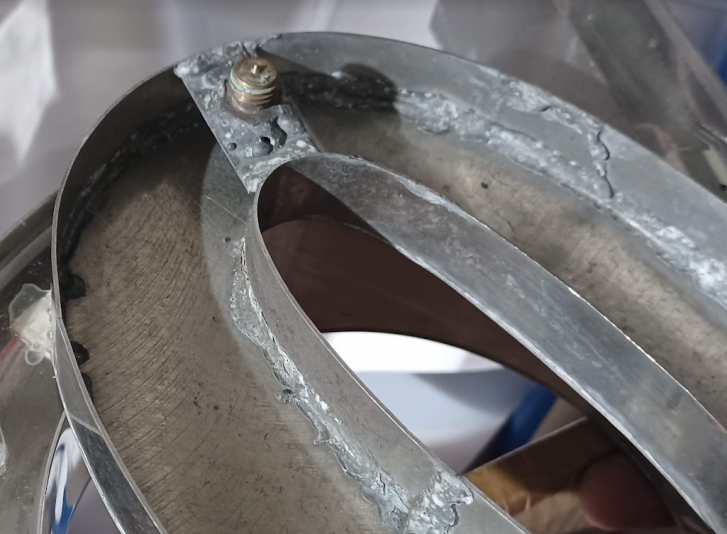

    hi guys, we have to relocate 3d letters to a new building, as attached.
    we also have to supply new 3d letters.

    the problem is, some of the existing letter metal studs won’t work on some uneven surfaces. so we want to move them.
    does anyone know if these can be grinded off, but more so, how are they attached? is it welded or something? we want to change the location of them.

    thanks for any advice

    Peter Cassidy replied 9 months ago 4 Members · 7 Replies
  • 7 Replies
  • Andy Thorne

    Member
    July 7, 2023 at 9:37 am

    Hi Mark,
    the brass locators and the bridge (or strap) they sit on are all soft-soldered in place.
    This solder will melt at 180-190c and allow you to take either the brass locator off or the locator and the strap out. Best done with a traditional copper solder iron heated over a high-heat flame, you may be able to do it with an electric soldering iron but generally, the tip is too small and often not hot enough. You can use a blow torch but care needs to be taken. Try to concentrate the point of the flame on the brass locator.
    This will get hot quickly, melting the solder under and around it. Using a pair of pliers lift the locator and put it on something heat-resistant (it will hold its heat for a while!). If you wish to remove the bridges then do the same. Please ensure you don’t get the letter too hot and in particular avoid the flame near the solder holding the return to the face. Too much heat may also burn the return but should polish back out with some Aerosol polish or similar (assuming it is polished or brushed as it looks). Putting the bridges back where you want will be a bit more problematic as you will need a good soldering iron, tinman’s solder and stainless steel flux.
    The letters don’t look very big so as an alternative you could bond long Bighead studs to the inside face.
    Hope that helps.

  • Mark Johnston

    Member
    July 10, 2023 at 1:10 pm

    @andy-thorne

    thanks very much Andy, thats the advice i needed mate. 😎

  • Peter Cassidy

    Member
    July 12, 2023 at 2:01 pm

    @markjohnston
    Who are you using for your 3D letters Mark?

    @andy-thorne
    Does your company fabricate these types of letters?

    • Andy Thorne

      Member
      July 12, 2023 at 3:01 pm

      we certainly do Peter! 😊

  • RobertLambie

    Administrator
    July 16, 2023 at 10:59 pm

    Peter:

    @andy-thorne details are as follows:

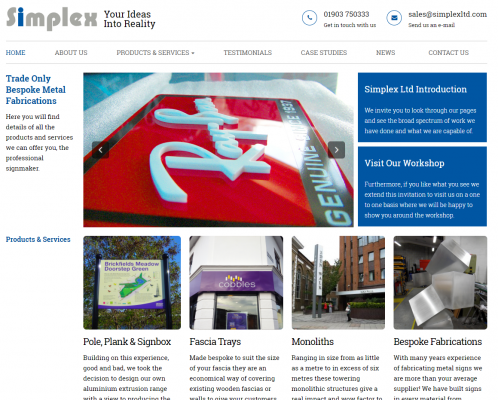

    https://www.simplexltd.com

  • Mark Johnston

    Member
    July 17, 2023 at 12:36 pm

    thanks for the details rob, ill add andys company to our supplier list. 👍

    • Peter Cassidy

      Member
      July 19, 2023 at 9:33 pm

      Same, thanks Andy. 👍
