Home › Forums › Sign Making Discussions › File Swapping › Suzuki Vitara 2 door hard top outline needed?

  • File Swapping

    Suzuki Vitara 2 door hard top outline needed?

    Posted by Steve Curry on 2 August 2006 at 12:37

    Has any one got an outline of the above vehicle, i have a soft top version but need a hard top outline if any one has it

    Many thanks.

    steve

    Steve Curry replied 19 years, 4 months ago 4 Members · 5 Replies
  • 5 Replies

  • Dave & Rob Lowery

    Member
    2 August 2006 at 15:09

    Is this the one?

    Attachments:

  • Steve Curry

    Member
    2 August 2006 at 15:36

    Thanks dave, but I have this one its the two door version I am after..

    thanks for looking

  • Garrie

    Member
    5 August 2006 at 22:55

    Hiya

    Is this the one?

    Cheers
    Sus & G

    Attachments:

  • Hugh Potter

    Member
    5 August 2006 at 23:43

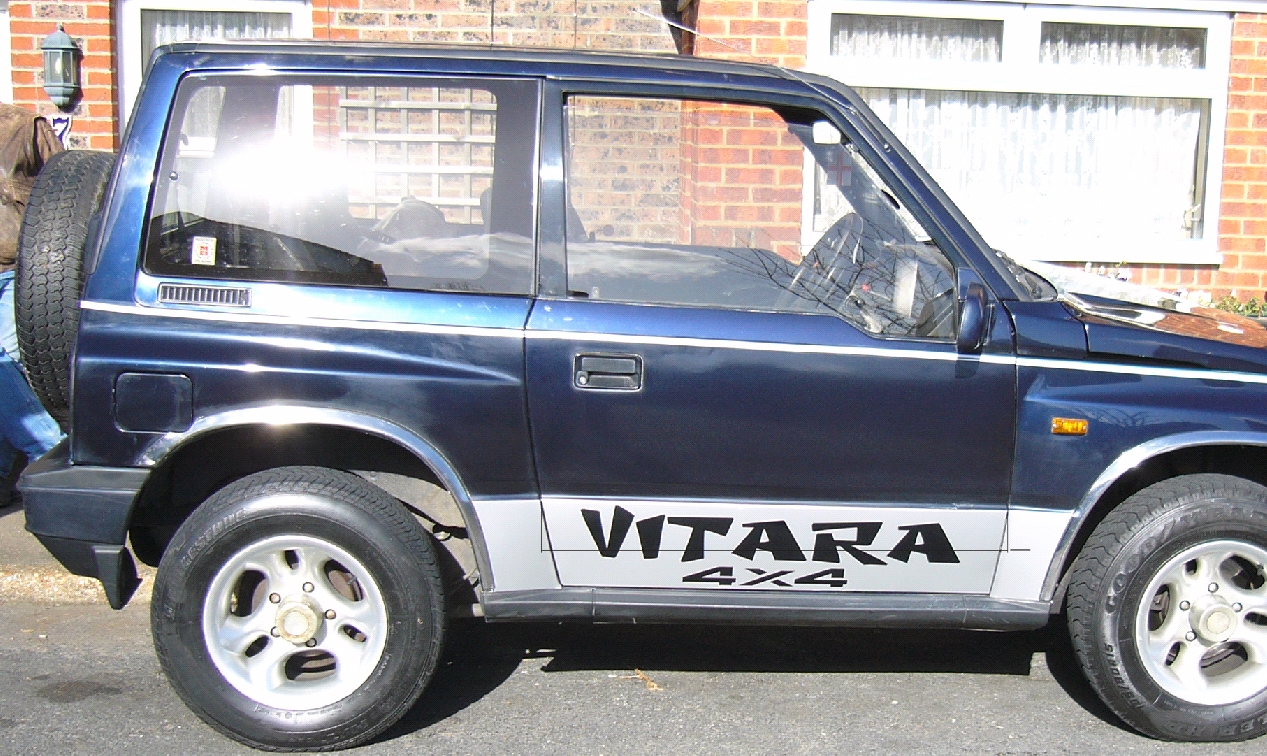

    not sure if this iswhat you’re aftr,

    the measurement along the door swageline is 1110mm. its the best i can do, file is too big to load as cdr12, and 3x bigger as ai !

    Attachments:

  • Steve Curry

    Member
    8 August 2006 at 08:53

    Thanks all, sorry it took so long to reply, haven’t had much time recently, got the van to do tomorrow so thanks very much.

    steve
