  • MTEX 5032 Pro / Mimaki JV5 DS 320 Head Deflection

    Posted by Unknown Member on 15 April 2017 at 09:24

    Hi Guys

    Hope one of your clever guys can advice.

    Many of you might already know that the MTEX 5032 pro is, in essence, a Mimaki JV5 DS 320 underneath the skin.

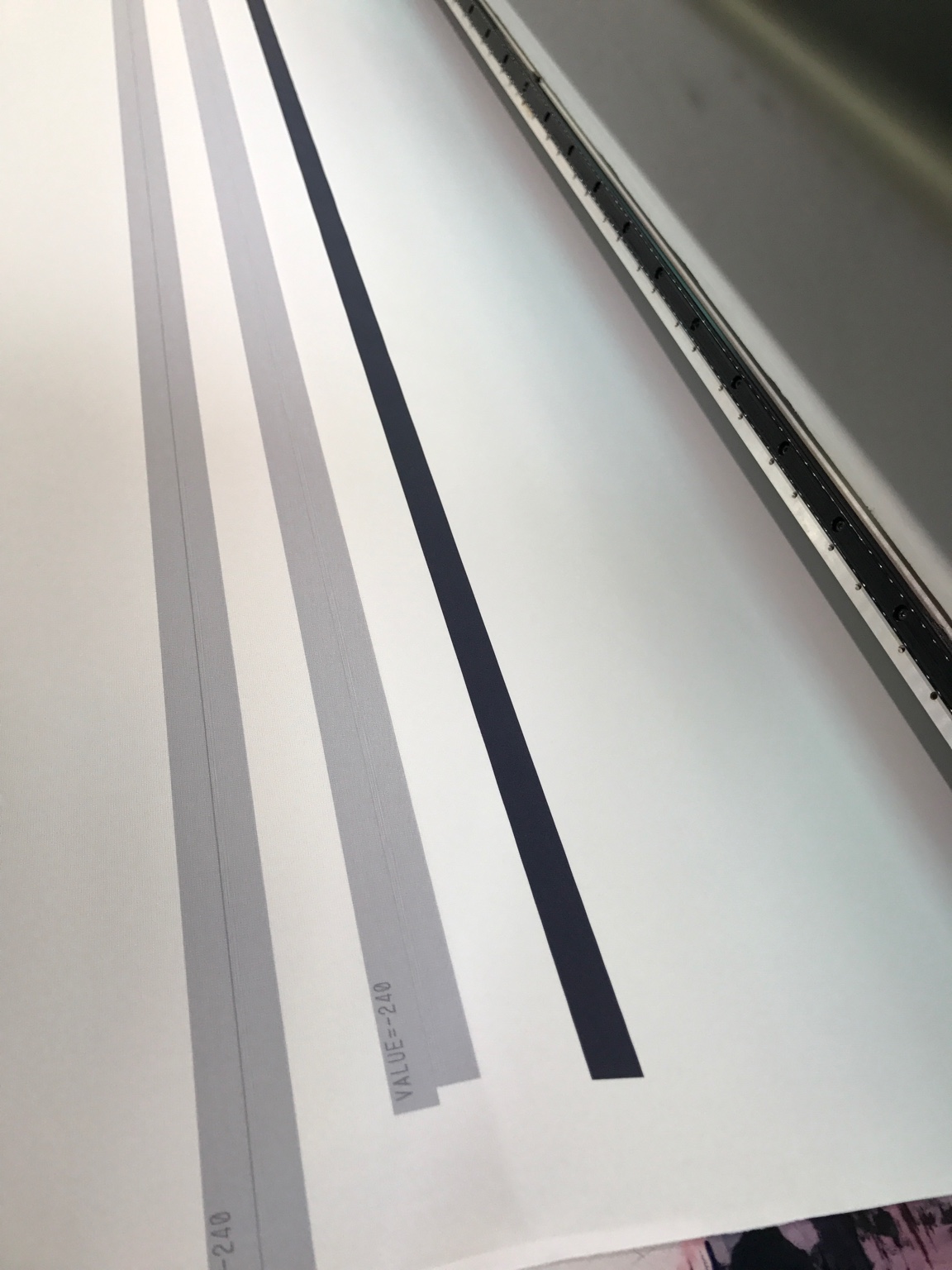

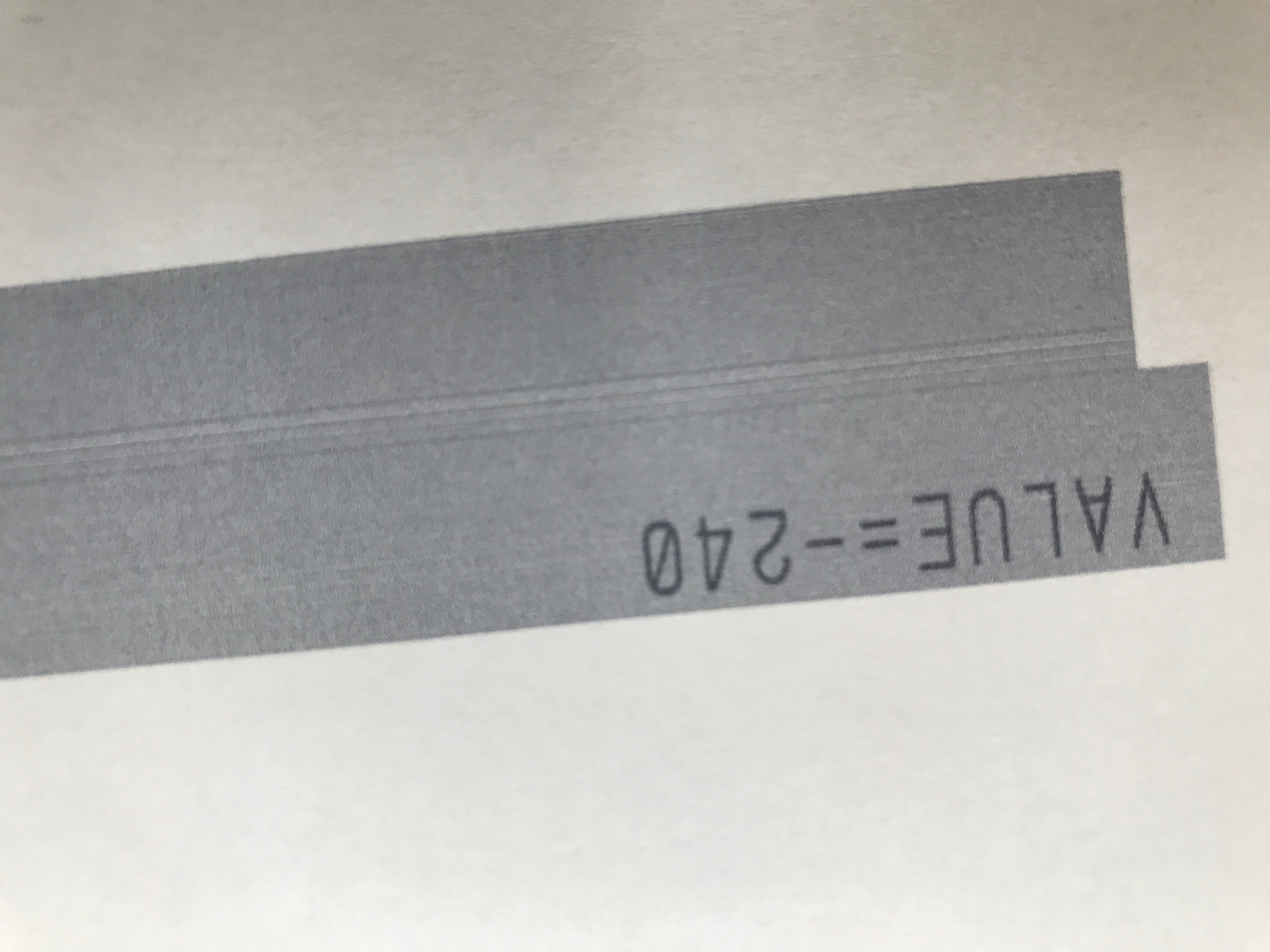

    I recently experienced some issues with the feed lines that you print to ensure the step is right on the machine see grey line print attached. As you can see there are some weird lines going through the second line.

    I did the usual;

    – Check bottom of heads to see if anything is dragging along the print
    – Clean the heads
    – Perform a powerful clean
    – Clean the wipers.

    I contacted the manufacturers and they told me I had head deflections and this is what was causing this in the grey lines.

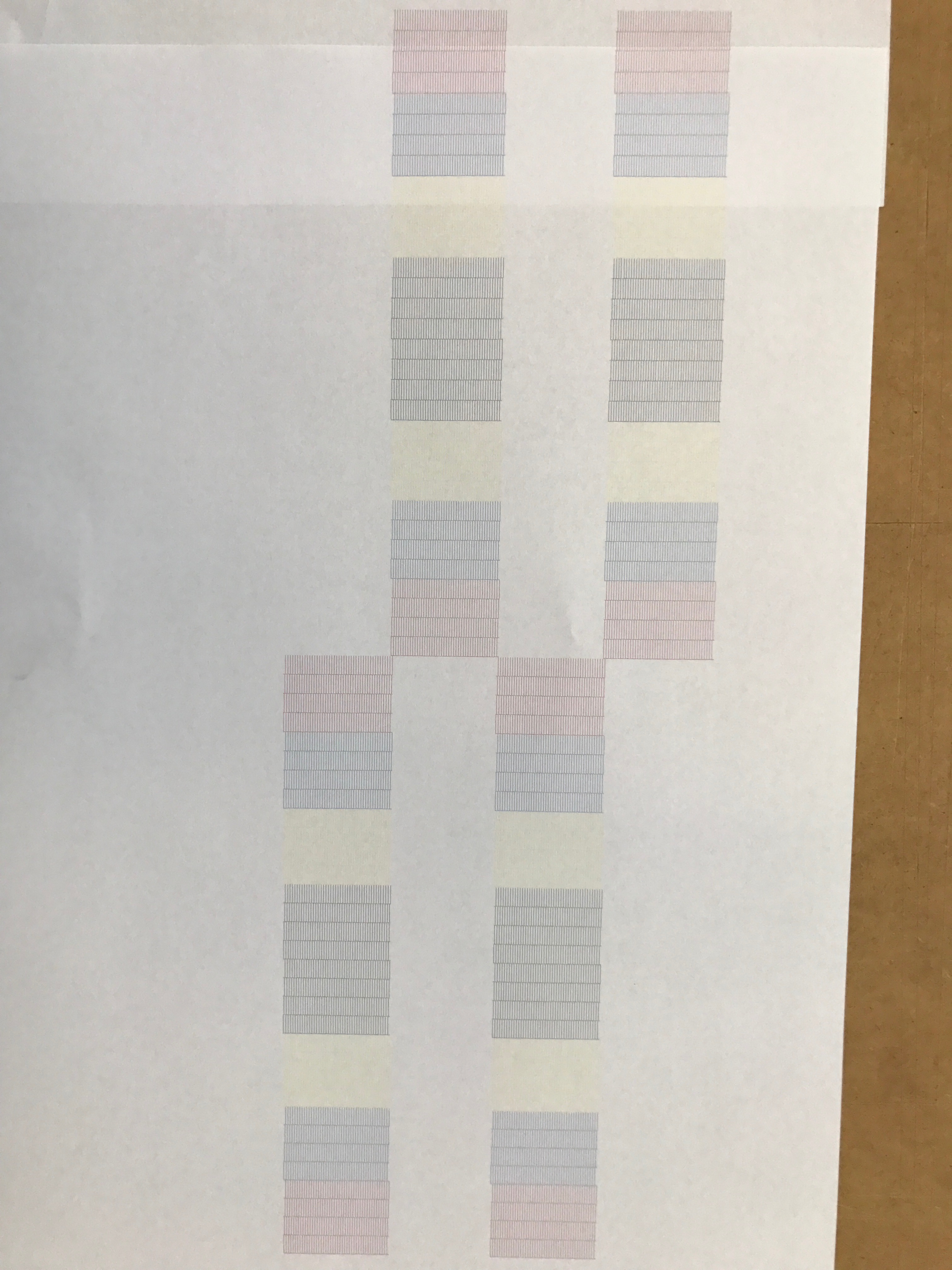

    Please see head plot attached, now I don’t about you guys but these head plots look pretty spot on to me, can anyone see head deflections in this plot?

    Once the machine is printing the print is pretty perfect.

    I have been told that replacing the head will sort this issue, now I’m sure this is probably the easiest route for an engineer, I’ve looked at many a head plot in the past and I must admit this plot looks pretty good to me.

    Would love to know what you all think? Or if anyone can offer any advice

    Is it even possible to fix head deflections?


    Attachments:

    Stafford Cox replied 8 years, 5 months ago 2 Members · 9 Replies
  • 9 Replies
  • Stafford Cox

    Member
    15 April 2017 at 10:11

    Hi James. Looking at it from a JV5 viewpoint, that black strip you see will only have been printed using head 1, and would only be using the 2 black channels. I can see a few deflections on it, but no missing nozzles. If it was a JV5 I would be going in to service mode and running a nozzle test on head 1 only from the #TEST/CHK PATTERN and see just how bad the deflections really are.

    I’m guessing the test draw is rotated so that head one is too right in the pictures by the way?

  • Unknown Member

    Member
    17 April 2017 at 13:07

    The machine has a touch screen so I’m not entirely sure how to get into the service mode. It says to hold function and remote key together but on touch screen this is near impossible

  • Stafford Cox

    Member
    17 April 2017 at 13:12

    Ah right. I don’t know then James. I’ve probably got a spare JV5 control panel if that helps?

  • Unknown Member

    Member
    17 April 2017 at 13:13

    Doing a powerful clean wouldn’t help nozzle deflections would it?

  • Stafford Cox

    Member
    17 April 2017 at 13:15

    Yeah, absolutely. Better still, put it on a nozzle wash and switch the thing off over night.

  • Unknown Member

    Member
    17 April 2017 at 13:34

    Right I managed to find a secondary control panel hidden in machine…cheeky cheeky! So I did what you said and got the following ..what am I’m looking for?

  • Unknown Member

    Member
    17 April 2017 at 13:34
  • Unknown Member

    Member
    17 April 2017 at 14:47

    Stafford,

    So I managed to turn all heads off and left just head one active

    See images of outcomes from the #TEST/CHK PATTERN

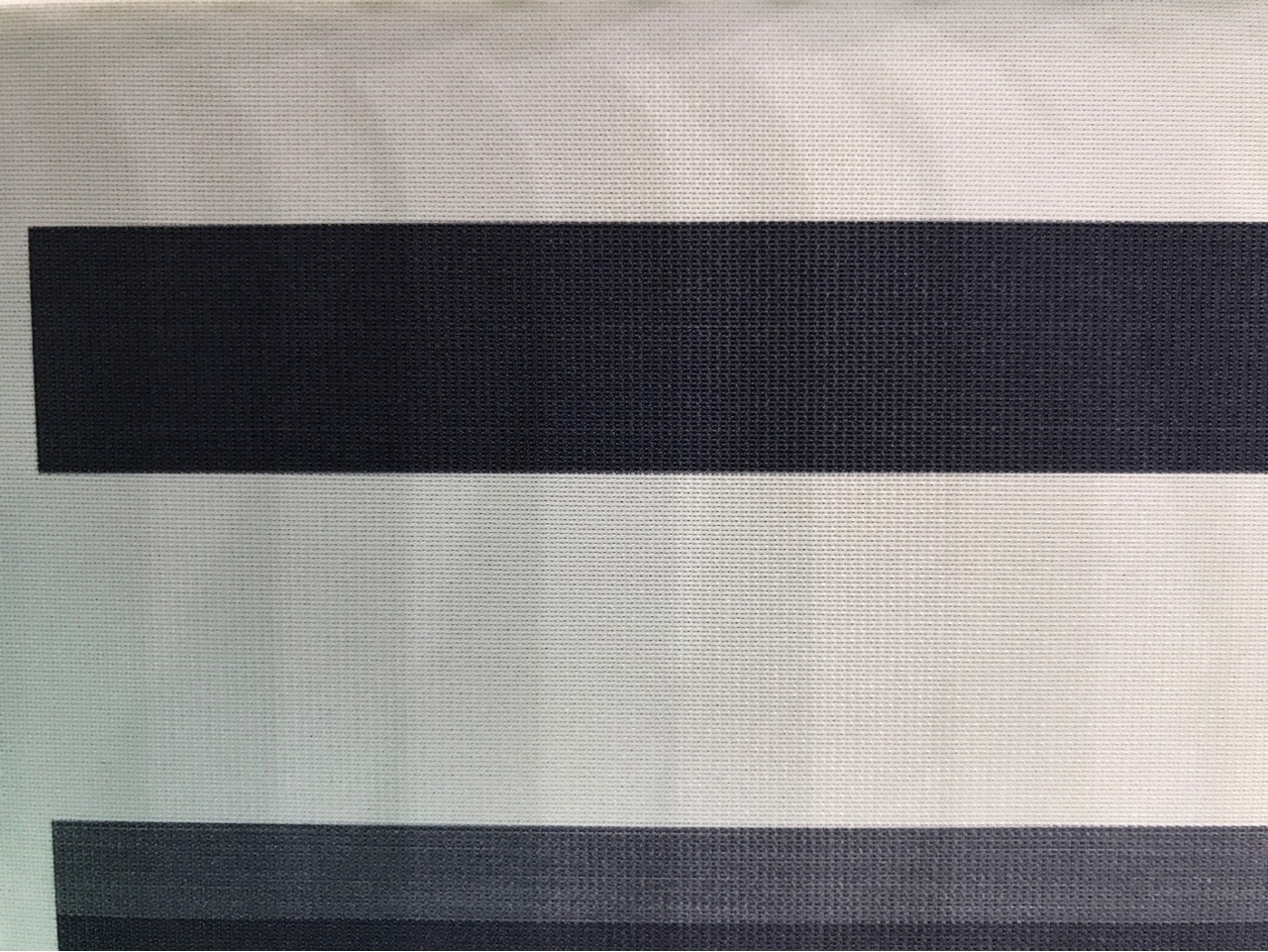

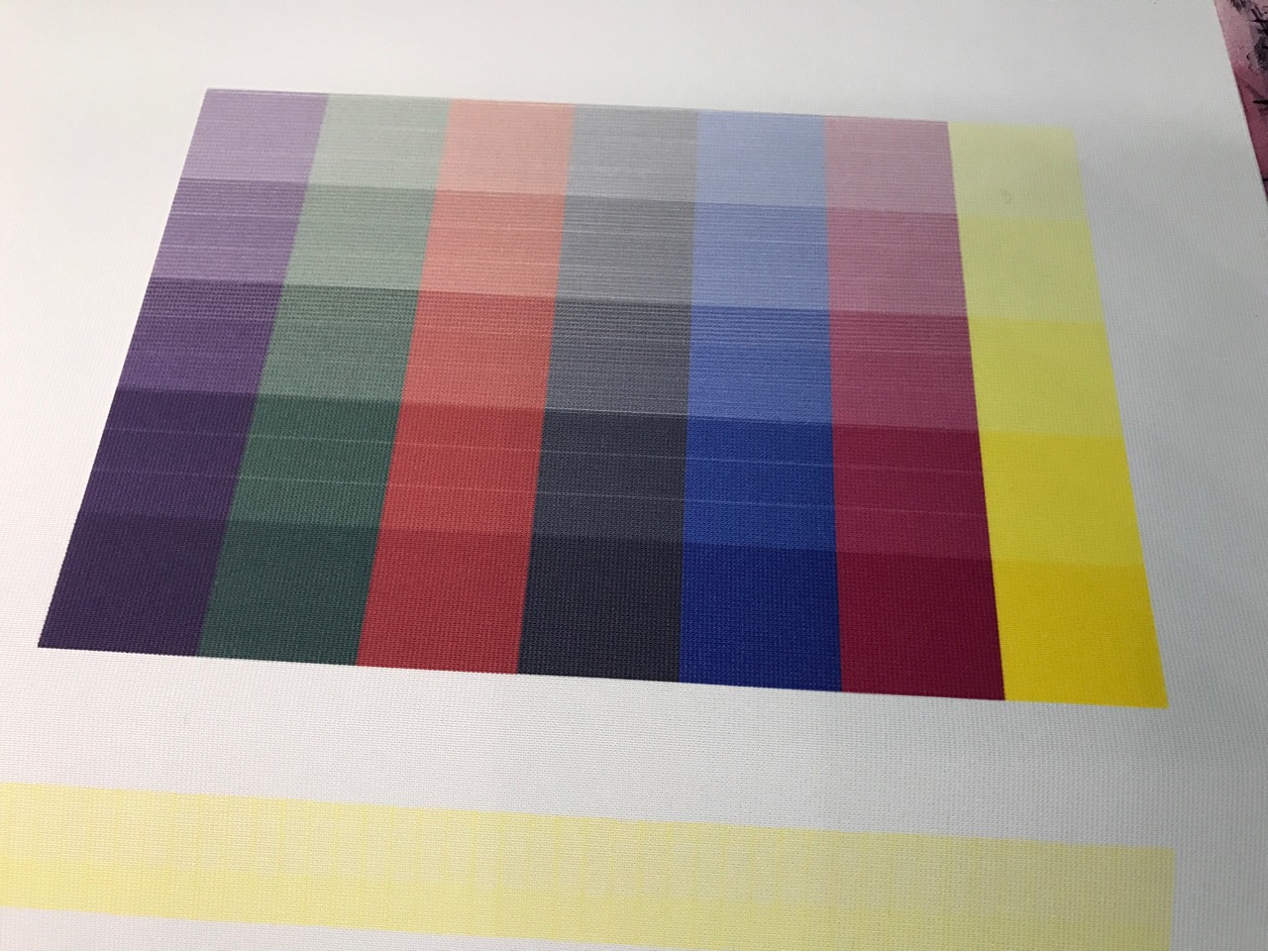

    I can colour charts, black on its own and nozzle checks

    Can you see anything out of the ordinary here?


    Attachments:

  • Stafford Cox

    Member
    17 April 2017 at 16:08

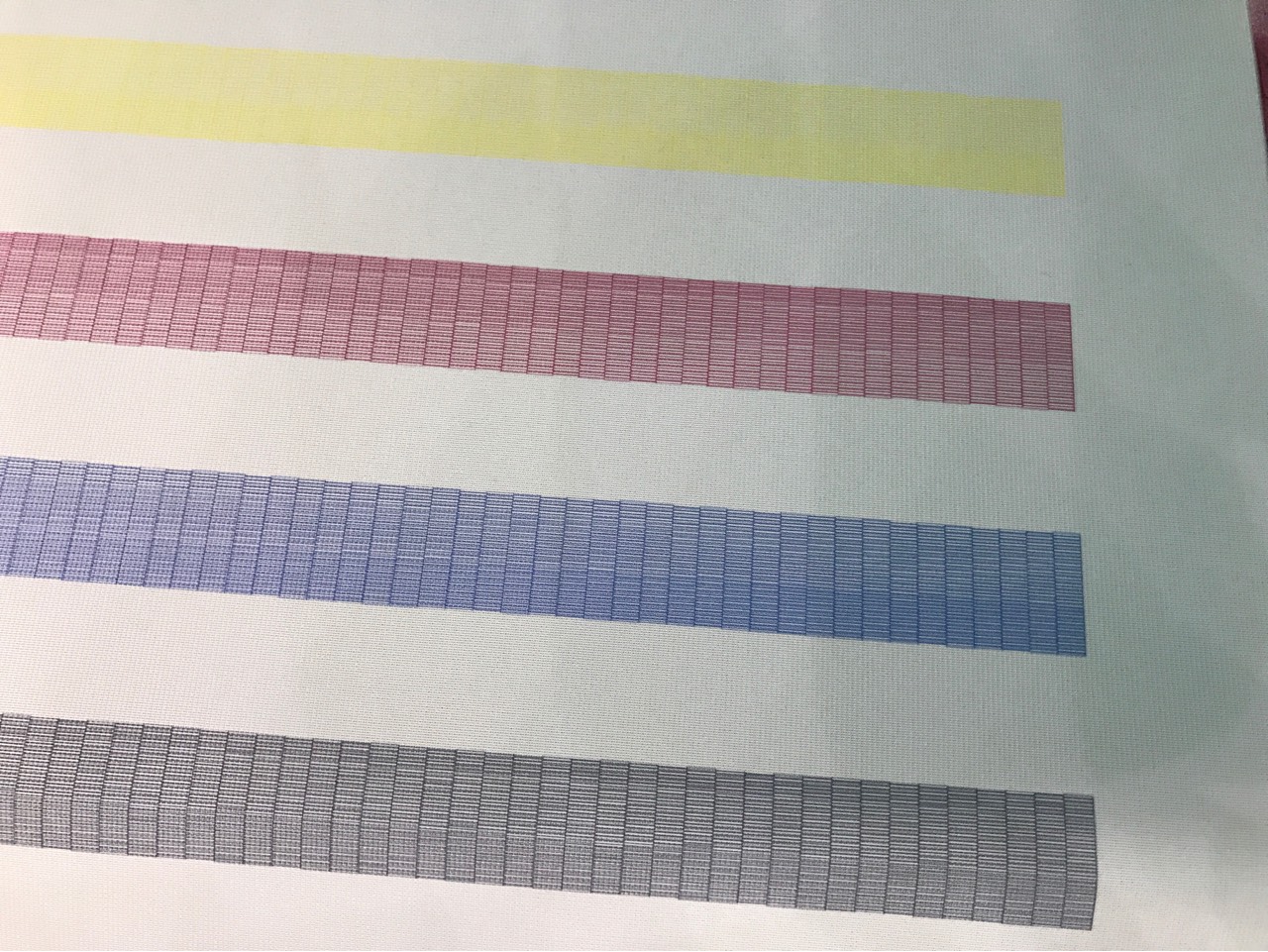

    Nice one. Picture 4/6 is what I was looking for. It’s a little difficult to see because of the weave of the media but you definitely have some deflection on the K channel and maybe a couple on the C. M looks Ok, but Y is impossible to see. That gives you a more true idea of the nozzle check. I would stick it on a nozzle wash and switch it off at the wall overnight so it soaks the heads. All of this is of course what I’d do on a JV5. I have no experience of your specific machine. Switch it on in the morning and run a couple of ‘fill up ink’ from the HD maintenance menu and see how it looks then. We’ll have a chat in the morning.
