Internal Corner On A Rectangle
Can somebody point me in the right direction. I want to make some templates for trophy plates, I started by making a box and then put rounded corners on and thought that I could find a tool to invert the corners but hey its never that simple is it? Using X4 if somebody could help please.
Regards Kevin -
10 Replies
-

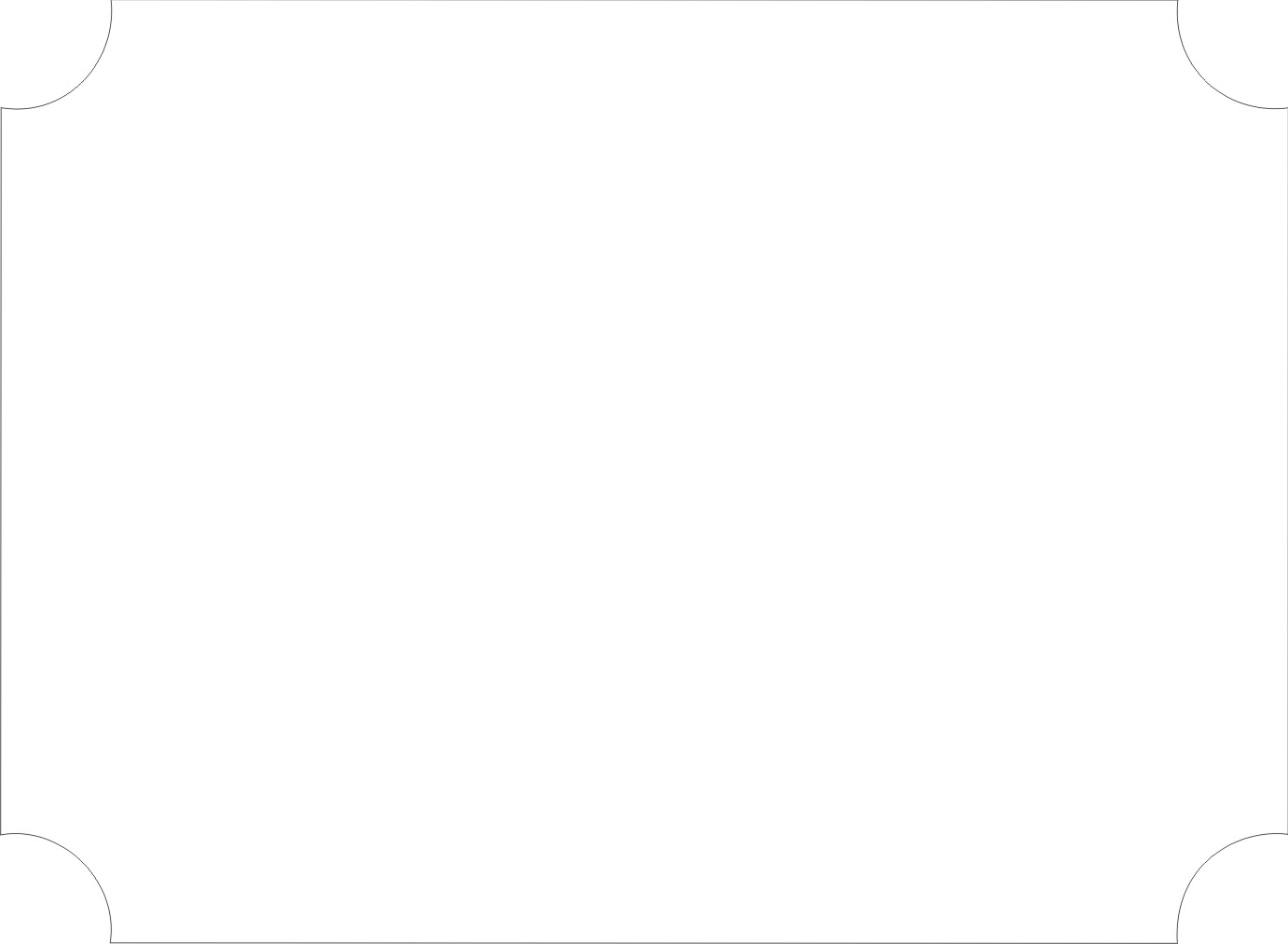

Do you mean like this?
Attachments:
-
Draw the rectangle , draw four circles of the size you want the curve to be. Activate snap to object and place the center of circle on each corner. Highlight all objects and click the back minus front tab.
Job done.
Earl -
Thanks all yes that is what I am trying to do, just thought there would be an easy way.
Kev
-
use the fillet command in x4
-
Chris could you point me in the direction of the fillet command please.
Kev
-
in x3 in the top menu bar
window
dockers
fillet/scallop/chamferchris
-
Chris, thank you very much for that, now there is an easy way to achieve what I wanted, thanks to everybody else that contributed as well.
Kev -
I’m glad i use easysign,
Simple Draw rectangle, rightclick, properties, set to whatever type of corner and radius you want. -
Ian, now that I know how to do it, it is easy always learning!
Kev -
Draw rectangle in X4
Select rectangle and click ‘shape tool’ (second one down, left hand tools)
Drag corner nodes of rectangle.
Look on top bar to see how setting, all or individual corners can be set there.Resizing rectangle non proportionally will alter the round corners this can be corrected with a free macro from http://www.macromonster.com I think, certainly there is one about (X5 has this sorted)
EDIT Sorry just read the post properly now, fillet command as Chris says in X4 although X5 now can do this by dragging.)
Alan D
